Ashley J501 Junction Block For Pendant Downlighter

Ashley J501 Junction Block For Pendant Downlighter
Ashley J501 Junction Block For Pendant Downlighter
  • Stock: 204
  • Model: JB-ASH-J501
  • EAN: 5060422620526
2502 sold
Ex Tax: £3.29
2 or more £3.75
3 or more £3.67
10 or more £3.55
50 or more £3.16
100 or more £2.76

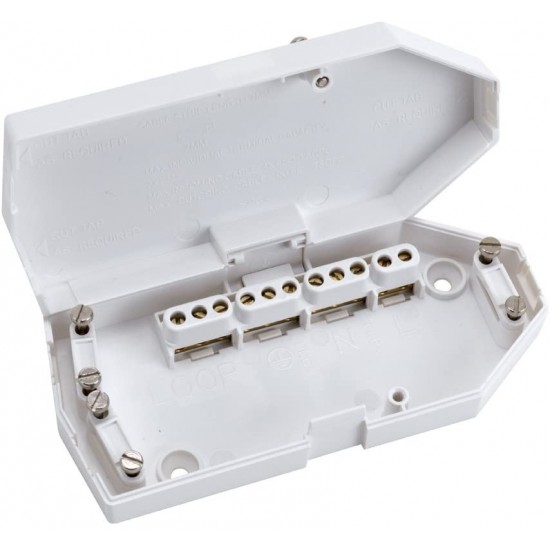

Ashley Downlighter Junction Box

This downlighter junction box is supplied complete with incoming and outgoing cable clamps and three plate terminals with separate terminals for flexible cords.

Features and Benefits

  • Will fit through a hole 50mm in diameter
  • Supplied with cable clamps to eliminate strain on terminations
  • Is of a three plate terminal design with captive terminal screws
  • It has separate terminals for flexible chords.
  • Has rear holes for fixing to the wall if needed
  • The terminals are on one side to maximise cabling space
  • Cable clamps can be reversed for single or double cable entry
  • Complies with BS EN 60670-22 Technical Specification
  • Terminal Capacity in sq mm:3 x 3 x 1.5 1 x 2 x 1.5 Rating - - : 16 amp

Dimensions (mm):122h x 53w x 27d
